Orchestrating batch processing pipelines with cron and make

By
Alex Dean
October 13, 2015
Share this post

At Snowplow we are often asked how best to orchestrate multi-stage ETL pipelines, where these pipelines typically include Snowplow and our SQL Runner, sometimes Huskimo and often third-party apps and scripts.

There is a wide array of tools available for this kind of orchestration, including AWS Data Pipeline, Luigi, Chronos, Jenkins and Airflow. These tools tend to have the following two capabilities:

  1. A job-scheduler, which determines when each batch processing job will run
  2. A DAG-runner, which can treat a job as a directed acyclic graph of inter-dependent steps and run those steps in the correct order

Make no mistake - these are powerful tools which let you orchestrate sophisticated batch processing pipelines. But with that power comes complexity, and operating these systems reliably is not always straightforward - for example see Kyle Kingsbury’s recent testing of Chronos, where he wrote:

If you already use Chronos, I suggest you... ensure your jobs are OK with never being run at all

If you are just starting out building your first batch processing pipeline, consider a much simpler approach: combining the standard Unix tools cron and make to orchestrate your jobs. This blog post walks you through this approach:

  1. Introducing our batch pipeline
  2. Defining our job’s DAG in make
  3. Running our Makefile
  4. Scheduling our Makefile in cron
  5. Handling job failures
  6. Conclusion

Introducing our batch pipeline

Let’s imagine that we need to setup a batch-processing pipeline with the following components:

  • Amazon SNS notifications at the start and (successful) end of each run
  • Our EmrEtlRunner and StorageLoader applications to run Snowplow on EMR and load into Redshift
  • Our Huskimo project to extract marketing spend data from Singular
  • Some data modeling performed in Redshift using our SQL Runner app

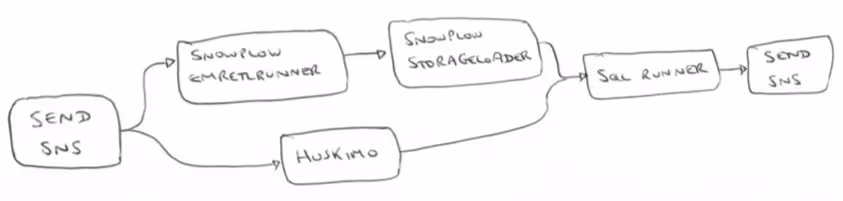

We’ll assume that the SQL data modeling is dependent on both our Snowplow load and our Huskimo run. Putting all this together, we end up with a processing graph which looks like this:

job-sketch

We’re now going to express this DAG in a Makefile ready for Make.

Defining our job's DAG in make

Make is a software build tool first released in 1977. It uses files called Makefiles to specify how to build the target program. A Makefile lets you specify tasks that contribute to the build, and express dependencies between these tasks, forming a directed acyclic graph.

Because the tasks in a Makefile are just shell commands, we can use make to orchestrate a batch processing pipeline, as long as each individual step in the pipeline is invokable from a shell.

Here’s the Makefile for our job, example-dag.makefile with a simple echo to represent each task, plus some sleeps to make it easier to see what is going on when we run it:

done: send-completed-sns send-starting-sns: echo "Sending SNS for job starting" && sleep 5 snowplow-emr-etl-runner: send-starting-sns echo "Running Snowplow EmrEtlRunner" && sleep 5 snowplow-storage-loader: snowplow-emr-etl-runner echo "Running Snowplow StorageLoader" && sleep 5 huskimo: send-starting-sns echo "Running Huskimo" && sleep 2 sql-runner: snowplow-storage-loader huskimo echo "Running data models" && sleep 5 send-completed-sns: sql-runner echo "Sending SNS for job completion" && sleep 2

By default Make will attempt to build the first rule found in the supplied Makefile - I like to call the first rule done and make it dependent on the last task in our DAG. You can see that the rest of our rules consist of:

  1. A name or “target”
  2. One or more dependencies on other targets, after the :
  3. The shell command to run, on a tab-indented newline

To learn a lot more about the Makefile syntax, check out the GNU make manual.

Let’s visualize this Makefile, using the makefile2dot Python script:

$ sudo apt-get install graphviz python ... $ sudo wget https://raw.githubusercontent.com/vak/makefile2dot/master/makefile2dot.py ... $ python makefile2dot.py <example-dag.makefile |dot -Tpng > example-dag.png

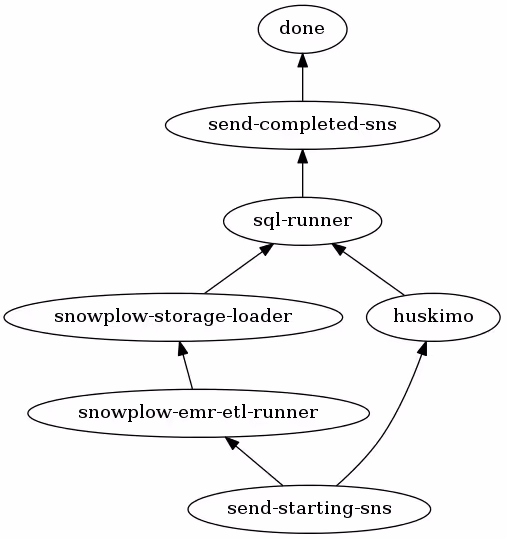

Here is the generated diagram:

job-makefile

The DAG flows bottom-to-top, which is a little quirky - it reflects the fact that Makefiles normally create a target which is built on top of multiple intermediate files.

Running our Makefile

Now that we have our Makefile, we need to run it! Here is the command we’ll use, together with the output:

$ make -k -j -f example-dag.makefile echo "Sending SNS for job starting" && sleep 5 Sending SNS for job starting echo "Running Snowplow EmrEtlRunner" && sleep 5 echo "Running Huskimo" && sleep 2 Running Snowplow EmrEtlRunner Running Huskimo echo "Running Snowplow StorageLoader" && sleep 5 Running Snowplow StorageLoader echo "Running data models" && sleep 5 Running data models echo "Sending SNS for job completion" && sleep 2 Sending SNS for job completion

In reverse order, our command line arguments to make are as follows:

  • -f specifies the Makefile to run (otherwise the default is Makefile in the current directory)
  • -j lets Make run with as much parallelism as is needed - so that our Huskimo and Snowplow tasks can run at the same time
  • -k means “keep going” through the DAG as far as possible - so for example, even if Huskimo fails, we can still complete the Snowplow tasks before failing the overall job

Scheduling our Makefile in cron

So make has given us the DAG component of our orchestration problem - what about the scheduling aspect? For this, we can simply use Cron.

Edit your crontab:

$ crontab -e

And add an entry to run our Makefile every morning at 3am UTC:

0 3 * * * make -k -j -f example-dag.makefile

And that’s it! We now have our DAG scheduled to run nightly.

Handling job failures

Our job will fail if one or more of the steps fails - meaning that a shell command in the step returns a non-zero code.

Let’s simulate a failure with the following failing-dag.makefile - note the exit 1 under the StorageLoader rule:

done: send-completed-sns send-starting-sns: echo "Sending SNS for job starting" && sleep 5 snowplow-emr-etl-runner: send-starting-sns echo "Running Snowplow EmrEtlRunner" && sleep 5 snowplow-storage-loader: snowplow-emr-etl-runner echo "Running Snowplow StorageLoader - BROKEN" && exit 1 huskimo: send-starting-sns echo "Running Huskimo" && sleep 2 sql-runner: snowplow-storage-loader huskimo echo "Running data models" && sleep 5 send-completed-sns: sql-runner echo "Sending SNS for job completion" && sleep 2

Let’s run this:

$ make -k -j -f failing-dag.makefile echo "Sending SNS for job starting" && sleep 5 Sending SNS for job starting echo "Running Snowplow EmrEtlRunner" && sleep 5 echo "Running Huskimo" && sleep 2 Running Snowplow EmrEtlRunner Running Huskimo echo "Running Snowplow StorageLoader - BROKEN" && exit 1 Running Snowplow StorageLoader - BROKEN make: *** [snowplow-storage-loader] Error 1 make: Target `done' not remade because of errors.

Make has faithfully reported our failure! So how do we recover from this? Typically we will:

  1. Fix the underlying problem
  2. Resume the failed DAG either from the failed step, or from the step immediately after the failed step

Some of the orchestration tools in this post’s introduction make this recovery process quite straightforward - things are a little more complex with our make-based approach.

The first thing we need to remember is that we are running with the -k flag, meaning that processing kept going post-failure, continuing to run steps on any branches of the DAG which were not (yet) dependent on the failing step.

This behavior makes it much easier to reason about our job failure. We don’t have to worry about what was running at the exact time of step failure; instead we just review the DAG to see which steps cannot have run:

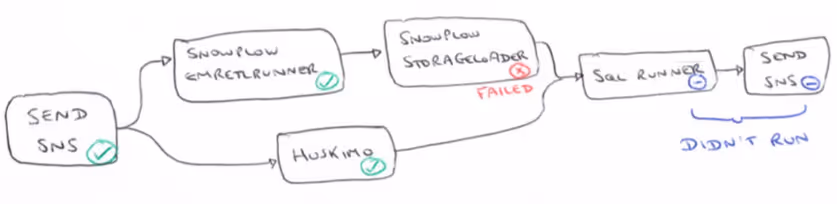

failure-sketch

When troubleshooting a job failure, always review the Make error output carefully to make sure that there weren’t in fact failures in multiple branches of the DAG!

With this done, we can now produce a scratch Makefile just for the job resumption, resume-dag.makefile:

done: send-completed-sns snowplow-storage-loader: echo "Running Snowplow StorageLoader - FIXED" sql-runner: snowplow-storage-loader echo "Running data models" && sleep 5 send-completed-sns: sql-runner echo "Sending SNS for job completion" && sleep 2

Note how we remove
d all the completed steps, and removed dangling references to the completed steps in the dependencies of the outstanding steps.

A quick visualization of this Makefile:

$ python makefile2dot.py <resume-dag.makefile |dot -Tpng > resume-dag.png

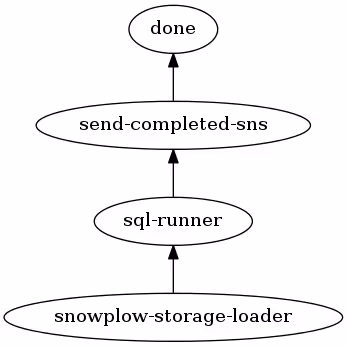

Here is the now much simpler DAG:

resume-makefile

Finally let’s run this:

$ make -k -j -f resume-dag.makefile echo "Running Snowplow StorageLoader - FIXED" Running Snowplow StorageLoader - FIXED echo "Running data models" && sleep 5 Running data models echo "Sending SNS for job completion" && sleep 2 Sending SNS for job completion

Great - we’ve now completed our recovery from the job failure.

Conclusion

This blog post has shown how you can use simple tools, make and cron, to orchestrate complex batch processing jobs.

The Makefile-based approach is simple, some might say crude - it certainly doesn’t have all the bells and whistles of a tool like Chronos or Airflow. However, this approach has many fewer failure states and it can be much easier to reason about and resolve job failures.

Even if you plan on implementing a full-blown distributed orchestration tool, it can be worth prototyping new jobs using something as simple as Make - give it a go and let us know your thoughts in the comments!
